Krash Jet Ski Electronics & Accessories
|
|||||||||||||
|
Yamaha OEM Start Stop Switch Yamaha to Krash wire harness sold separately below or the plug ends will need to be cut off and spliced together for use with Krash Jet skis. |
||||||||||||
|
Yamaha Style Aftermarket Start Stop Switch Yamaha to Krash wire harness sold separately below or the plug ends will need to be cut off and spliced together for use with Krash Jet skis. |
||||||||||||
|
Wire harness for Yamaha Style Start Stop Switch to Krash wire
harness The white plugs on the left side will plug into our Yamaha style switch above. The right side will have a square plug on the end and will plug into the Krash wire harness. This one will not work with the rectangular plug from the older models or the ones with 2 separate plugs. |
||||||||||||
Please read the notes to the right. |
Krash Start Stop Switch
This will have a square gray plug on the end. This one will not work with the rectangular plug from the older models or the ones with 2 separate plugs unless you cut and splice the wires. It is critical that the inner start switch be aligned up in the plastic housing correctly upon installation. If its lined up correctly it will go right together with ease, if not it wont. Do not force it. The '22 switch has shorter wires. length is 84" + or - 2" and will not work with older models unless you lengthen the wires or splice your plug with longer wires on it. '21 wires will be about 96" but stock is very limited. Please order for your year. |
||||||||||||
|
Blowsion 3 position rotary bilge switch Features: Corrosion resistant and has withstood the most abuse Blowsion can give them. Dash or engine compartment mounted, one of the most popular and easiest to install bilge switches available. It is waterproof and is a rotary 3 position switch. For a clean tray mount we recommend the watt hole mount below. |
||||||||||||
|
Thrust Innovations Watt Hole mount for Blowsion 3 position rotary bilge switch
above (switch not included) 4 colors |
||||||||||||
|
Waterproof bilge switch Comes with billet aluminum bracket and hardware where needed (excluding the switch only) that mounts to your factory start/stop switch. 9ft high grade wire lead. Kawasaki not for 650 or X2 with vertical switch Only universal or switch only will work on 2021 Krash |
||||||||||||
No returns on any electronics. Read description → |

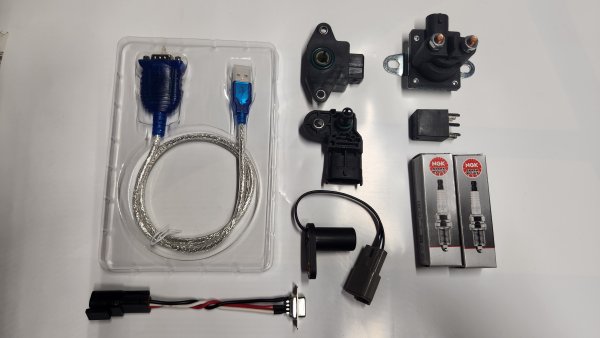

2021 Krash Microsquirt programmable ECU These have the latest software updates "Flash" and rev limiter is set to 7500 to stay within warranty requirements but can be changed by request prior to ordering/shipment. You must do the normal flywheel mod to run this ECU. This will not work in place of your pre '21 CDI system. Sold with or without wire harness adaptor. Harness adaptor needed if replacing the Kavinci ECU. Video running on the water here Video of programming here |
||||||||||||
Preprogramed No returns on any electronics In stock as of 1-10-23 |
Krash/Zeel 997 CDI These are for use with 997 electrical box only. Not for use with '21 electronics where everything is separate. This is not an ECU. Krash has changed over to Zeel for now which is set in beast mode, 130hp. |
||||||||||||
|
Krash Electrical Box Clear Cover Available with or without predrilled holes for external fuse packs. Do not over tighten screws that hold the cover on or it will crack it. |
||||||||||||
|
Krash External Fuses and Wiring Do not over tighten screws that hold the cover on or it will crack it. Instructions: Adding fuses to the 997 electrical box PDF |
||||||||||||
No returns on any electronics |

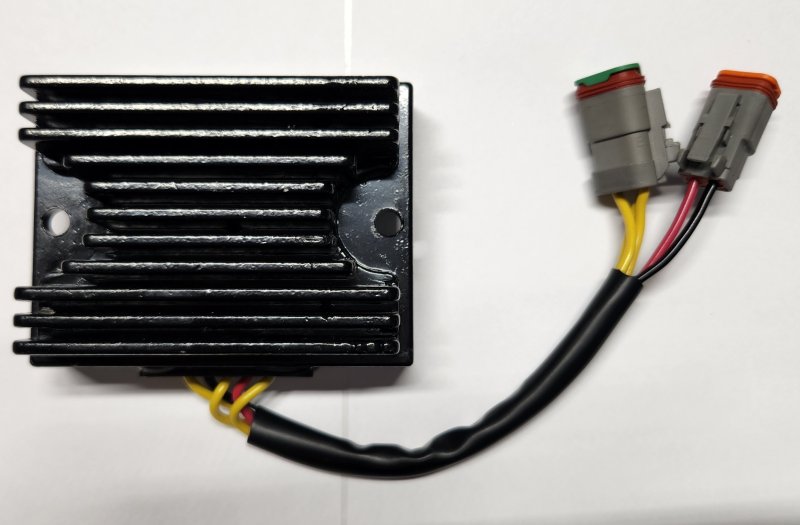

Voltage Regulator/Rectifier Pre '21 goes inside an electrical box '21 style has 2 flat rectangular connection plugs '22 style has one square and one triangle plug WSM for pre '21 with electrical box will need one mounting tab removed |
||||||||||||
No returns on any electronics Preorder only, we cant keep them in stock |
Krash New Improved 997 Magnetic Pickup Will work on older models |
||||||||||||
No returns on any electronics Preorder only, Limited inventory |
Krash Hall Effect Sensor/Pickup Will work on '21+ electronics |
||||||||||||
No returns on any electronics |
Krash 997 Flywheels Options: Standard Charging (weight 2lbs 3oz) or Light Weight Total Loss (non charging) Available in 20mm or 22mm Measure diameter from the front, the small side of the hole in the flywheel. The 20mm flywheel may measure 19.5mm. |
||||||||||||
|
Flywheel Bolt |
||||||||||||
|
Flywheel Puller Universal puller works with many flywheels |
||||||||||||
No returns on any electronics |
Krash Stators sold as pictured |
||||||||||||
No returns on any electronics |
Aftermarket Krash 997 Stator May also be used on the 1200's if you lengthen the power wires and remove the ground wire. |
||||||||||||
No returns on any electronics |
Ricks Stator for '21 + Krash Electronics With triangle plug. |
||||||||||||
 Krash Flywheel Key/Woodruff Key $7 ea |
Flywheel Key/Woodruff Key Stock and Aftermarket. Read below. Fits standard and light weight flywheels. Sold each Aftermarket version is 1mm less in height and what we prefer to use. There are some height issues when switching/upgrading flywheels for certain models of crankshafts. Going with the aftermarket key eliminates any possible issue. | ||||||||||||
 Front engine/flywheel cover $125 |
Front engine/flywheel cover This is the '21 style so you may need to lengthen your stator wires to use with older 997's. Comes with the new style plug and seal. | ||||||||||||
 NGK Spark Plugs $4 each |
NGK Spark Plugs Krash 997 runs a BR8ES Krash 1200 runs a BR6ES Krash 1200 upgraded plug is a BPR6ES |
||||||||||||
